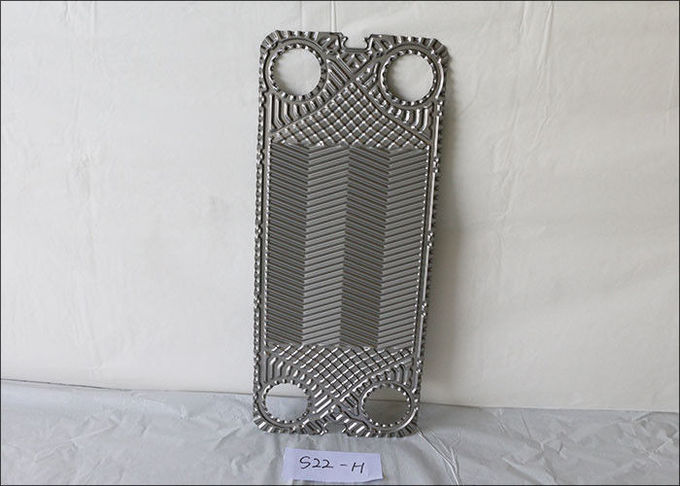

Sondex Fishbone plates of Heat Exchanger

Years of experience have inspired innovative upgrades to create the ultimate in Fishbone plate design. The tried-and-true Fishbone plate pattern is featured in most SONDEX plate heat exchangers.

What does that mean for you?

Engineered to maximize turbulence, even at low flow rates, this pattern achieves unparalleled heat transfer. The pattern has proved its effectiveness through rigorous testing and is the default choice for plate heat exchangers.

Variants of the Fishbone pattern are designed to create different levels of turbulence, use a different pressure drop, and meet different thermal requirements. Each variant fills a particular niche, or is aimed at a certain type of duty. This flexibility allows us to optimally cover all your heat transfer needs, no matter the application.

Special features include a reinforced hanging system for better suspension, an optimized distribution area that prevents stagnant zones, a maximized heat transmission area for high performance, and the unique Sonder Lock gaskets that ensure proper alignment of the plate pack in the assembled heat exchanger.
