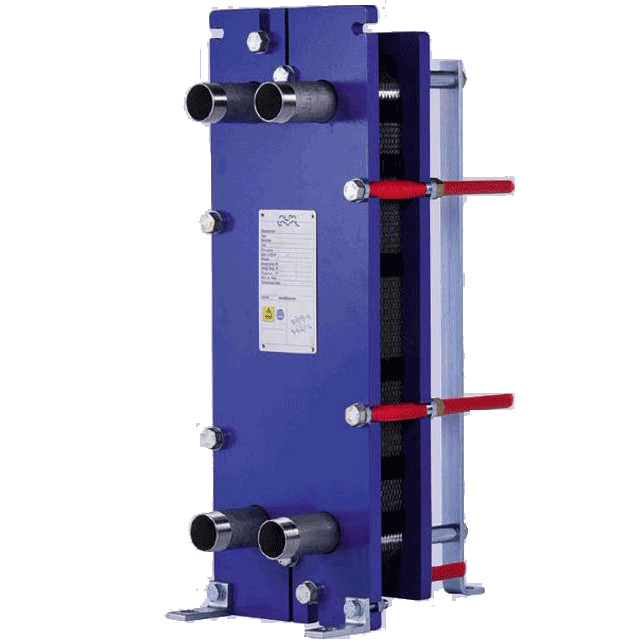

High quality steel carton frame AISI 316 plate type HRSB industry
gasket plate heat exchanger factory directly wholesale
Plates and Gaskets have many kinds of material for your choose.
Commonly Features;
| Name | Plate Heat Exchanger |
| Brand | ALFA |
| MODEL | M etc |
| Plate material | Stainless steel (AISI304,AISI316) titanium and titanium palladium
(Ti, ti-pd),20Cr,18Ni,6Mo(254SMO), nickel (Ni)HASTELLOY alloy |
| Gaster material | NBR,HNBR, EPDM, FPM, CR, Viton |
| Frame material | Stainless AISI304/AISI316 or Q235B etc |
| Connect material | NBR,HNBR,EPDM,stainless AISI304/316 etc |
| Advantage | 1.Sealing gasket is not exposed 2. Advanced plate structure 3.
Advanced framework structure 4. Solid sheet thickness |
| Application: | Widely used in petroleum industry, power station, solar
photovoltaic, electronic industry, papermaking industry, textile
industry, chemical industry, Marine and engine, hvac, food
industry, oil processing, metallurgy industry, etc |
| | |
| | |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120℃ | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140℃ | High temperature mineral oil, high temperature water |
| EPDM | -25~+170℃ | Hot water, water vapor, acid, alkali |
| Viton | -5~+130℃ | Acid, alkali, fluid |
| Plate material | Suitable for fluid |
| Stainless(AISI304,AISI316): | Clean water, river water, cooking oil, mineral oil |
| Ti,Ti-Pd: | Sea water, salt water, salt |
| 20Cr,18Ni,6Mo(254SMO): | Dilute sulfuric acid, dilute salinized water solution, inorganic
water solution |
| Ni: | High temperature, high viscosity caustic soda |
| HASTELLOY: | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Model | Connection | QMAX | PMAX | TEST PMAX | Surface max | W | H | L |
| DN | (m³/H) | Bar | Bar | ㎡ | mm | mm | mm |
| M3 | 32 | 14 | 16 | 21 | 3 | 180 | 490 | 700 |
| M6 | 50 | 45 | 25 | 33 | 37 | 320 | 930 | 1410 |
| M6M | 50 | 45 | 25 | 33 | 35 | 320 | 930 | 1610 |
| M10B | 100 | 190 | 25 | 33 | 100 | 460 | 1084 | 2400 |
| M10M | 100 | 190 | 25 | 33 | 60 | 460 | 1084 | 2400 |
| TL10B | 100 | 190 | 30 | 39 | 250 | 480 | 1981 | 3245 |
| TL10P | 100 | 190 | 30 | 39 | 250 | 480 | 1981 | 3245 |
| M15B | 150 | 390 | 30 | 39 | 370 | 650 | 1940 | 3290 |
| M15M | 150 | 390 | 20 | 26 | 230 | 650 | 1940 | 3290 |
| T20B | 200 | 700 | 30 | 39 | 425 | 480 | 2183 | 3930 |
| T20P | 200 | 700 | 30 | 39 | 425 | 480 | 2183 | 3930 |
| T20M | 200 | 700 | 30 | 39 | 410 | 480 | 2183 | 3930 |
| TS20M | 200 | 540 | 25 | 33 | 85 | 800 | 1435 | 2750 |
| MX25B | 200/250 | 900 | 25 | 33 | 1000 | 920 | 2900 | 3400 |
| M30 | 300/350 | 1400 | 25 | 33 | 1400 | 1150 | 3100 | 5220 |
| TL35B | 300/350 | 1800 | 30 | 39 | 2200 | 1180 | 3218 | 6400 |
Unique Features:
The plate plate of the APV plate heat exchanger has the plate plate
interlocking function on the four corners, so that the pressure
resistance of the plate can be improved, and it can be conveniently
installed during maintenance. When the locking slot of the four
angle is locked, the plate plate of the heat exchanger can be
reliably positioned.
Unique interlocking positioning
One of the exclusive features of the Paraflow is interlocked
gaskets, a series of vertical umbrella arches and beachlike
structures to ensure that all parts of the gasket have reliable
support with the form of a patented pressure trough. In order to
provide the strength of plate and plate support for the sealing
system, the alignment and positioning of the Paraflow beam is
ensured by the upright rib during compaction and operation.
Embedded gasket
Paraflow can assemble APV's Parac gasket. The gasket is
mechanically connected and can be fixed on the sheet without
bonding. It saves time and money when dismantling the shim because
there is no need to increase the initial cost.
Double leakage prevention
The APV gasket is designed to be double sealed to prevent mixing of
two fluids. When the production is abnormal (for example, pressure
shock), the fluid leaks into the dead zone formed by double seals
and then flows out of the drain ditch. This design makes the leak
easy to detect and finds the location of the leak.
Compact structure, small area, good heat transfer effect, small
pressure drop, a variety of fillers, good corrosion resistance,
especially in the treatment of foamy materials and vacuum
operation, has its unique advantages.
Advantages: high heat transfer efficiency, large logarithmic temperature
difference, light weight, small area, convenient cleaning, and easy
to change the heat area or process combination, suitable for heat
transfer in multiple media.
Application: Widely used in the petroleum industry, power station, solar
photovoltaic, electronics industry, papermaking industry, textile
industry, chemical industry, marine and engine, HVAC, food
industry, edible oil processing, metallurgical industry and so on.
Role: Heat exchanger is a device that transmits heat from a hot
fluid to a cold fluid, also known as a heat exchanger. Its main
function is to guarantee the specific temperature required by the
process for the medium.
It can transfer heat between materials between two or more fluids
at different temperatures, transfer heat from a higher temperature
fluid to a lower temperature fluid, and bring the fluid temperature
to meet the flow specifications to meet the needs of the process
conditions., At the same time, heat exchanger is also one of the
main equipment to improve energy efficiency.
How to purchase:
1.Please send me your basic reference temperature (inlet/outlet)of
the heat exchanger first side and the heat exchanger second side
which temperatue can may meet your requirement.Also please tell the
mass flow rate
2.If you dont know the above NO1, please send me your connection
size (DN) and max surface with your mass flow rate of the heat
exchanger two side.
3.After get your inquiry,we will comfirm which model suitable for
you.
4.Comfirm the material of the Plate and Gasket
5.Discuss the price
6.Make the deal
